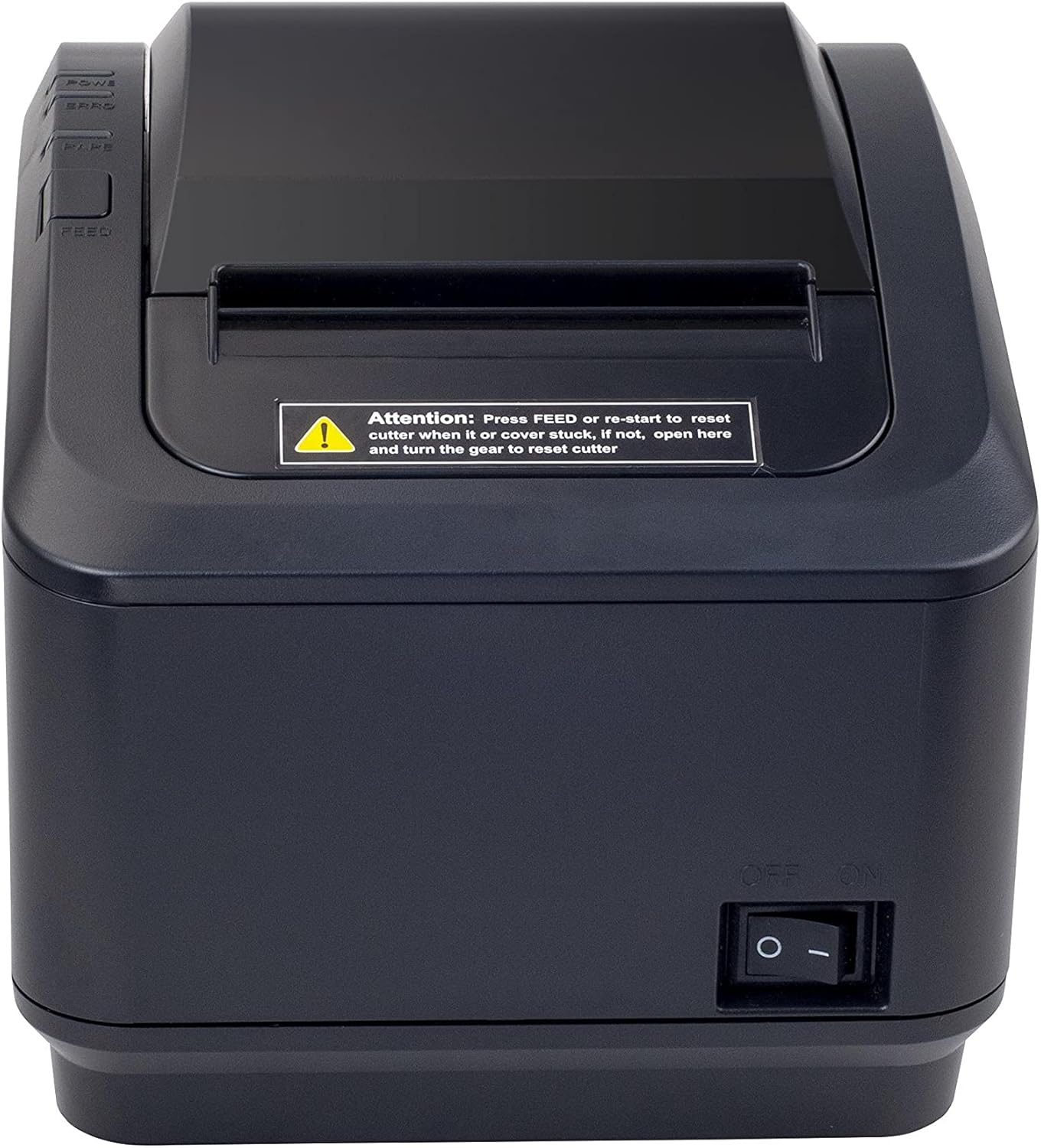

The XP-K200L (USB) is a fast, compact 80 mm direct-thermal receipt printer for retail, hospitality, and healthcare. It delivers 200 mm/s output on 79.5 ± 0.5 mm media with a 72 mm print width and a partial auto cutter for efficient order handling. Command-adjustable line spacing and multiple fonts keep tickets sharp and readable. Works out of the box with ESC/POS and mainstream POS apps.

Key features

• Interface: USB

• Printing speed: 200 mm/s

• Paper width: 79.5 ± 0.5 mm | Print width 72 mm

• Column capacity: 576 or 512 dots/line; typical columns on 80 mm: Font A 42/48, Font B 56/64

• Fonts: ANK Font A 12×24 dots (1.5×3.0 mm); Font B 9×17 dots (1.1×2.1 mm); Chinese 24×24 dots

• Line spacing: 3.75 mm adjustable by commands

• Cutter: Partial auto-cut

• Barcodes 1D: UPC-A/E, EAN-13/8, CODE39, ITF, CODABAR, CODE93, CODE128

• Barcodes 2D: QR Code, PDF417

• Input buffer: 64 KB (USB/Serial) | NV Flash: 256 KB

• Cash drawer port: DC 24 V/1 A

• Power: Adapter AC 110–240 V, 50–60 Hz → DC 24 V/2.5 A

• Drivers: Windows/JPOS/Linux/OPOS/Android/Mac; Utilities for Windows/Linux; SDK iOS/Android/Windows

• Operating: 0–45 °C, 10–80 % RH; Storage: –10–60 °C, 10–90 % RH

• Reliability: 1.5 M cuts; print-head life 150 km

• Dimensions: 189.5×145.35×139.7 mm; Weight 1.0 kg

In the box
Printer, power adapter DC 24 V/2.5 A, USB cable, user guide.
